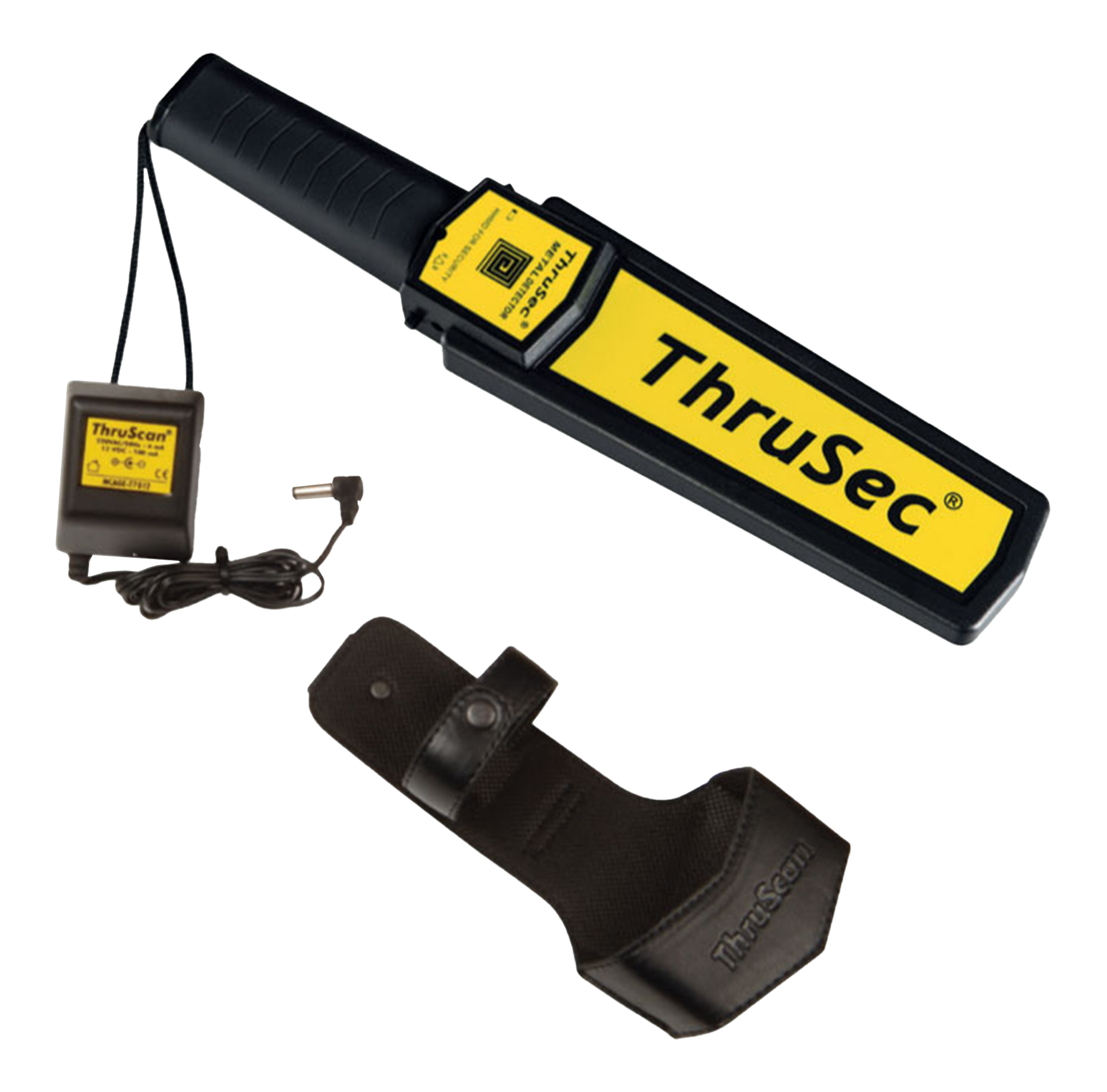

ThruSec® Handheld Metal Detector

Reliable Detection, Simple Operation

ThruSec® is designed for fast and dependable handheld inspections in places with heavy foot traffic. It detects ferromagnetic, paramagnetic, and diamagnetic metals and includes auto-calibration so it adjusts itself to the surrounding environment when powered on.
For clear feedback, it provides audible and vibration alarms (earphone optional) plus LED status indication: green for operation, red during alarm, and yellow for low battery.
The unit is supplied with a hand strap and belt holster; battery and adapter are not included by default and can be selected as optional items if needed.

Areas of Use

– Airports
– Military facilities
– Government buildings
– Shopping malls
– Ports
– Exhibition & fair centers
– Factories and business centers with controlled access

Key Features

– Detects all metal types (ferromagnetic / paramagnetic / diamagnetic)
– Auto-calibration on startup
– Certified low-frequency VLF technology (human-friendly)
– Alarm types: audible + vibration (earphone optional) + LED status
– Low-battery warning: yellow LED
– Battery: Ni-MH 9V 200 mAh rechargeable/replaceable (optional)
– Includes hand strap + belt holster (battery/adapter not included by default)

Specifications

– Product Code: 90000000122
– Weight: ~375 g ( ~420 g with battery; battery weight ~35 g)
– Dimensions (H×W×L): 43 mm × 83 mm × 410 mm
– Alarm: Audible + Vibration (Earphone optional)
– LED Indicator: Green (operating), Red (alarm), Yellow (low battery)
– Battery: 1× Ni-MH 9V – 200 mAh (Rechargeable/Replaceable – Optional)
– Charging Time: ~15 hours first charge, ~10 hours next charges (Input: 220V AC 50 Hz, Output: 12V DC 1A)
– Current Draw: 11 mA standby (new units standby: 7 mA), 39 mA in alarm
– Operating Temperature: -10°C to +45°C
– Storage Temperature: -20°C to +55°C
– Housing: ABS
– Minimum Detection Distance (examples): Browning 14-round pistol: 10 cm, Razor blade (2×13 cm): 3 cm
– Product Size Details: Depth 4.3 cm, Width 8.5 cm, Length 41.5 cm
– Product Weight (listed): 0.4 kg
– Packaged dimensions (W×L×H): 5.5 × 10 × 50 cm
– Packaged weight: 0.8 kg

Certificates

Certifications/standards listed (incl. NILECJ / ECAC Doc.30 / IP53 / EN61010 / CE / EN61000-6-2 / EN61000-6-3) and ISO 9001:2015 production standard
